M10L Vertical toggle clamp with horizontal base and solid clamping arm
Vertical toggle clamp with horizontal base
- Galvanized and zinc-plated quality steel
- Rivets of stainless steel and hardened bushings
- Bearings and bushings are greased/pre-lubricated
- Oil resistant, ergonomic red handles
- Safety mechanism with finger protection and for higher operator security
- Hardened and galvanized, quick adjustable clamping screw
- Oil- and heat resistant rubbcer cap
Note :
- CAD-files on request !
| Size | F1 ⇧ (kN) | F2 ⇧ (kN) |  |  | hw min. | hw max. |  |  | Price (EUR) | Order- No. |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 1.0 | 1.2 | 140 | 76 | -3 | 6 | M6 x 35 | 175 | 11,90 | M10L-2 |
| 3 | 1.8 | 2.5 | 200 | 105 | 0 | 12 | M8 x 45 | 395 | 12,90 | M10L-3 |
| 4 | 2.0 | 3.0 | 230 | 140 | -8 | 21 | M8 x 65 | 680 | 20,90 | M10L-2 |
| 5 | 3.0 | 5.0 | 265 | 190 | 10 | 34 | M12 x 80 | 1325 | 28,90 | M10L-5 |

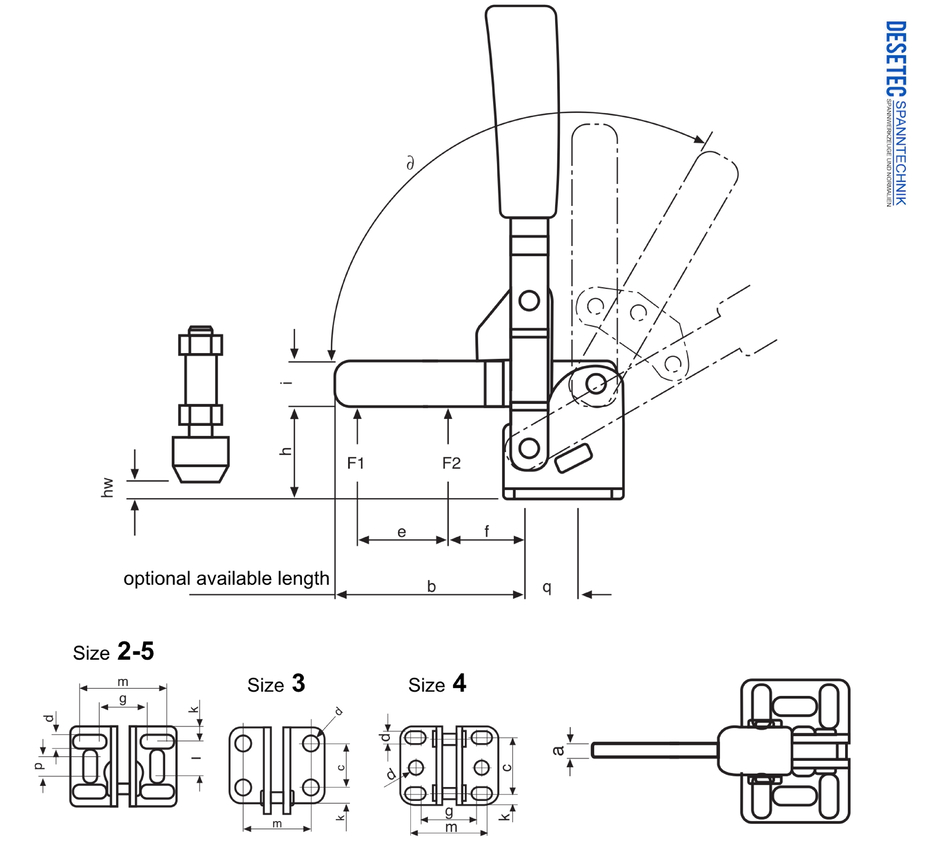

| Size | a | b | c | d | e | f | g | h | i | k | l | m | n | p | q | ∂ | Order-No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 5 | 51 | 20 | 5.3 | 24 | 10 | 23 | 26 | 12 | 6 | 11 | 30 | 26 | 3 | 13 | 100° | M10L-2 |
| 3 | 6 | 72 | 20 | 7 | 29 | 27 | - | 36 | 18 | 7.5 | - | 32 | - | - | 16 | 105° | M10L-3 |
| 4 | 8 | 101 | 34.5 | 8.5 | 61 | 30 | 34 | 48 | 20 | 9.25 | 17 | 45 | - | - | 22 | 105° | M10L-4 |
| 5 | 10 | 137 | 45 | 8.5 | 88 | 40 | 45 | 55 | 25 | 10.5 | 25 | 50 | 45 | 5 | 31.5 | 115° | M10L-5 |
