M12L Vertical toggle clamp with angle base
Vertical toggle clamp with horizontal base
- Galvanized and zinc-plated quality steel
- Rivets of stainless steel and hardened bushings
- Bearings and bushings are greased/pre-lubricated
- Oil resistant, ergonomic red handles
- Safety mechanism with finger protection and for higher operator security
- Hardened and galvanized, quick adjustable clamping screw
- Oil- and heat resistant rubbcer cap
Note :
- CAD-files on request !
| Size | F1 ⇧ (kN) | F2 ⇧ (kN) |  |  | hw min. | hw max. |  |  | Price (EUR) | Order- No. |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 1.0 | 1.2 | 135 | 76 | 2 | 11 | M6 x 35 | 210 | 11,60 | M12L-2 |
| 3 | 1.8 | 2.5 | 235 | 105 | 6 | 18 | M8 x 45 | 400 | 12,70 | M12L-3 |
| 4 | 2.0 | 3.0 | 270 | 141 | 11 | 40 | M8 x 65 | 730 | 22,90 | M12L-4 |

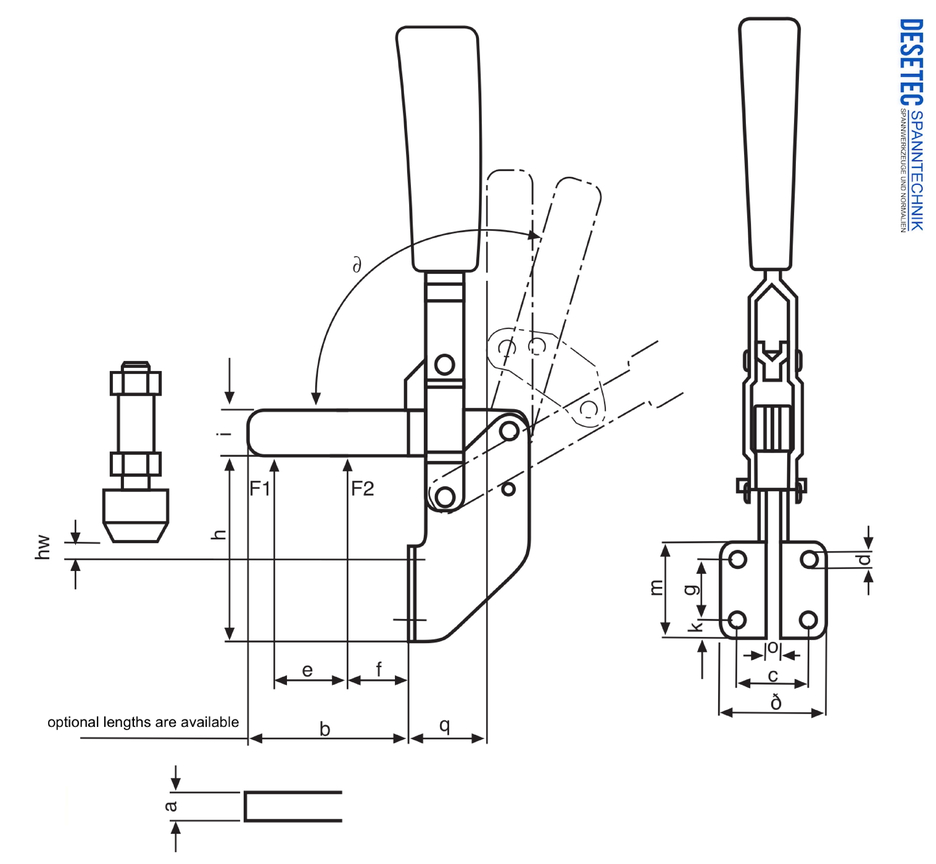

| Size | a | b | c | d | e | f | g | h | i | k | l | m | o | q | ∂ | Order-No. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 5 | 40 | 25.5 | 6 | 25 | 9 | 22 | 61 | 12 | 6 | 37 | 34 | 5 | 24 | 105° | M12L-2 |
| 3 | 6 | 58 | 31.5 | 7.5 | 30 | 14 | 24 | 73 | 18 | 7 | 45 | 39 | 6 | 31 | 105° | M12L-3 |
| 4 | 8 | 77.5 | 42 | 8.5 | 35 | 19 | 28 | 77 | 20 | 7 | 60 | 42 | 8 | 35 | 105° | M12L-4 |
